Friday, May 15, 2020

Almost there...

In my last post I started to work on the two shelves that will go in the middle and at the bottom of the vanity I am building.

I cleaned the tenons on each board and marked them so to remember where each one was going.

Each board is marked to recall its place.

The next step was to make the mortises in the rails used to assemble the shelves boards so I marked each mortise on one rail.

Mortises marked on one rail.

I then put the opposite rail side by side and used the first one to mark the second one. This allowed me to get mortises perfectly facing each other in both rails. In case of a slight misplacement on one rail it will be reported to the other.

Using one rail to mark the other.

I chopped the mortise waste using a mortising chisel. Each mortise is 1/4" wide and 1/4" deep.

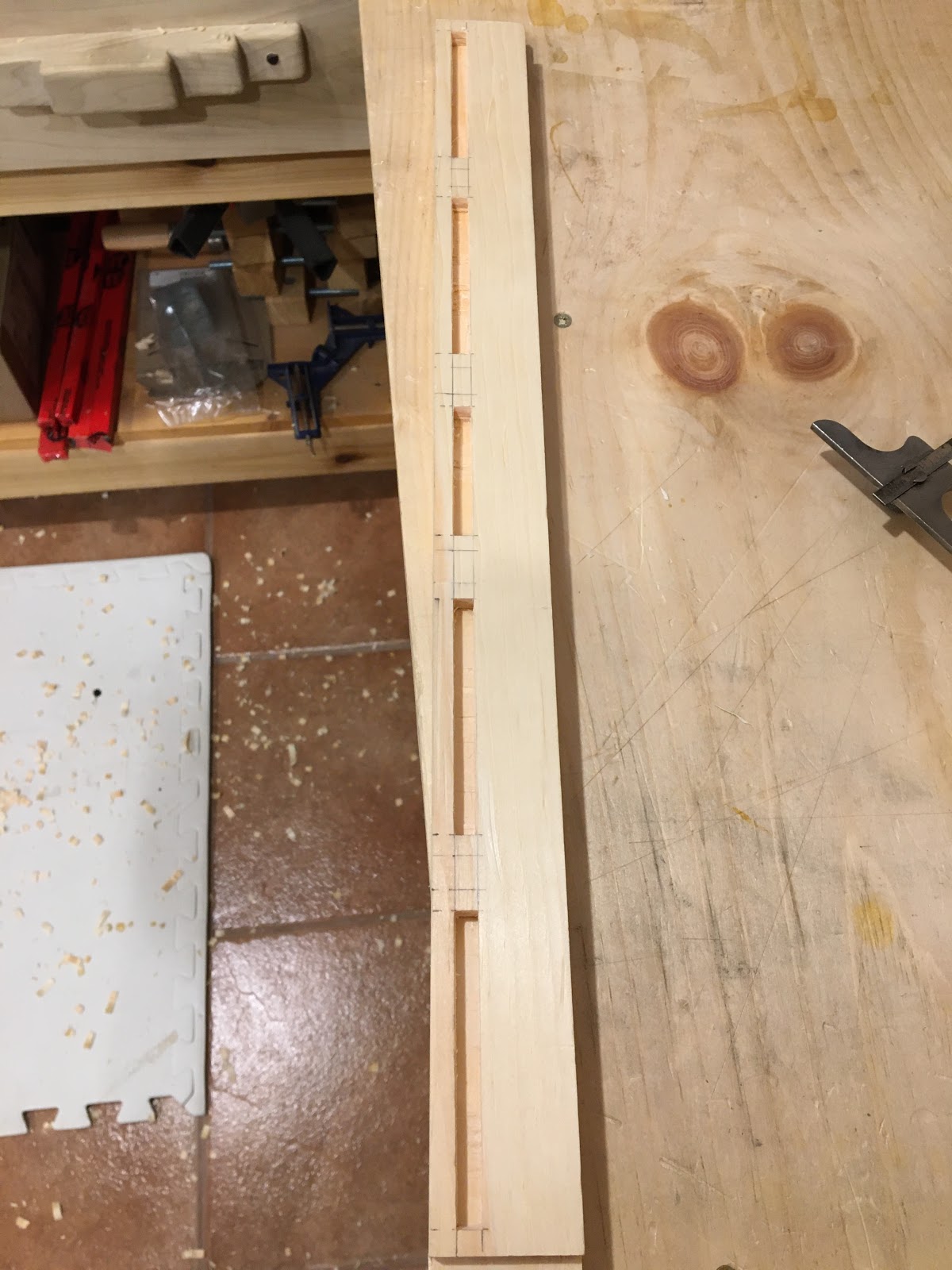

First rail done.

After about an hour of fun, both rails were done and I was able to clean the boards for the first dry fit.

First shelf dry fit alone...

... and in its final place.

One more shelf to go and one more hour of fun and I was able to see the final result.

Both shelves in place.

Now that all parts are done I will be able to tackle the last adjustments and cleaning then will finish parts before final assembly.
